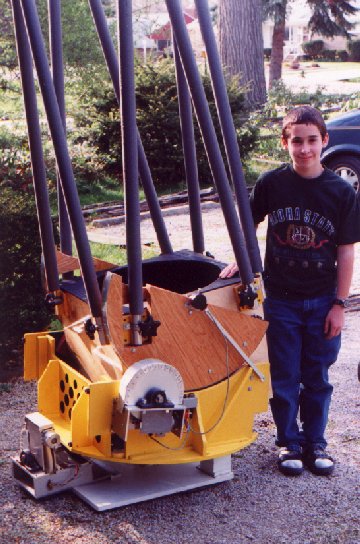

20 inch F5 Dobsonian Telescope with BVC mirror
For the last six years, I've been working on telescope, mount, and imaging projects almost every free night when it's cloudy. Since I live in Northeast Ohio, that's almost every night, so I've done a lot of building.
Here is my 12 1/2 inch, f5 Dobsonian telescope. It has a rotatable tube so you can reach the eyepiece.

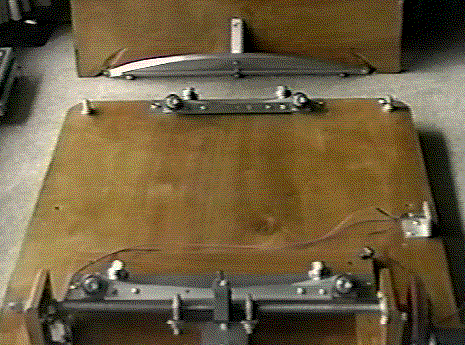

It sits on this Shaw equatorial platform that I built from scrap aluminum, plywood, and an old Xerox machine (Xerox machines are actually telescope drives, put together funny).
The drive mechanism uses a 200 step stepping motor from an old disk drive, driven from a half-stepping controller circuit with a remote speed control for manual guiding. There was some vibration visible at the eyepiece when over about 200X magnification, so I have replaced the stepper with one of the geared DC motors in the Xerox machine (it operated the paper size changer). For speed control, I built a little PWM "lamp dimmer" circuit. This has completely eliminated any vibration visible at the eyepiece.
The original platform design is by Chuck Shaw, and you can find his plans for it on the ATM Page.. Thanks, Chuck.
Link to The ATM page

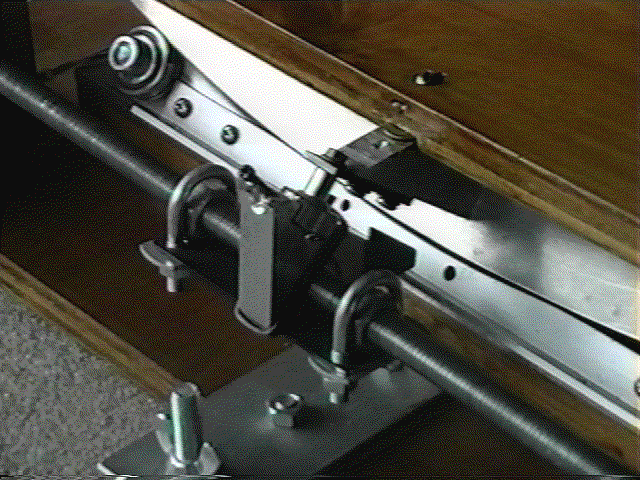

I made a few modifications. This Gymbal and shaft came from a Xerox machine I took apart with the help of my son, Thomas.
The bearings also came from the Xerox machine. They are mounted on aluminum angle, cut to a compound angle to match the platform tracking duration and our latitude, 40 degrees.

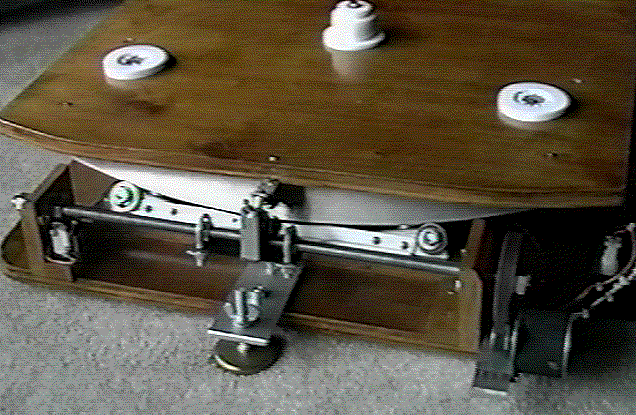

Here you can see both sets of bearings, and one of the 3/8 " aluminum chords, which are secured by triangular 1/2" aluminum braces.
Since I'm an electrical engineer, I thought it would be a reasonable project to build a CCD camera to interface to my computer.
The CCD Camera Cookbook by Berry, Kanto, and Munger, is a wonderful book. It takes you through building and testing your camera step by step. It includes software to direct your step-by-step checkout of the circuit boards.

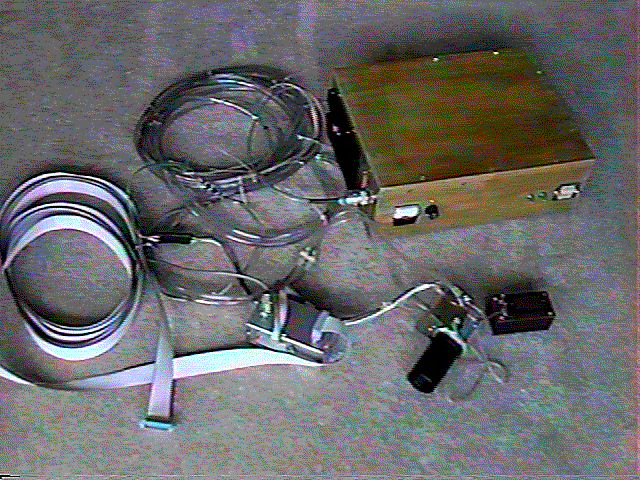

Here is my CCD camera and power supply with all of the cables and tubing, but no water pump or computer.
The power supply provides +/- 15 volts DC for the camera, and 0 to 7 volts DC at 6 amps to the water-cooled thermoelectric cooler in the camera head. The stock design had a 5 volt supply for the water pump, but I use a 115 VAC garden fountain pump, so I included a 12 volt DC supply for my equatorial platform instead.

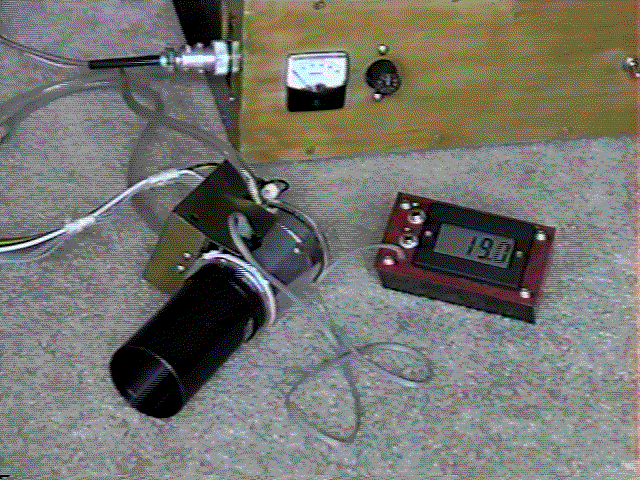

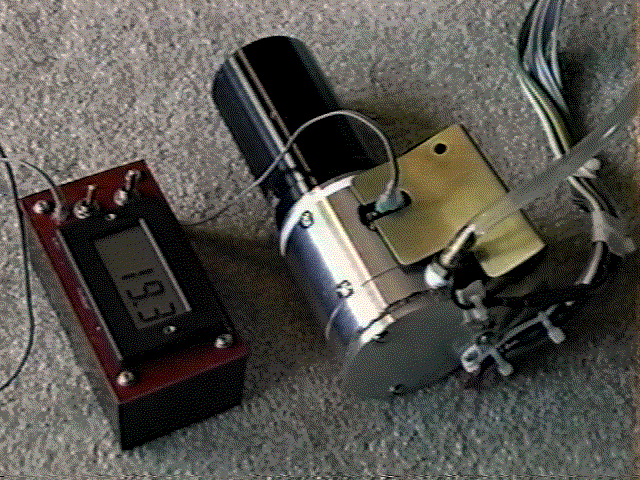

The camera head has a Texas Instruments TC245 CCD chip in it. This chip is designed for color TV, but they make the part available without the red, green, and cyan filter layers, so you can use the extra resolution. When cooled to -30 degrees Centigrade, thermal noise is very low, so you can make up to 1 hour exposures. I added a National LM34CH monolithic temperature sensor and LCD temperature display (battery powered). This close-up shows the head (I like brass), and the temperature readout. A circuit for the LM34CH mod is on The ATM page, but I built mine with isolated battery supplies. The Cookbook Camera Home Page has a wealth of information for builders and users.
Link to Cookbook Camera home page
I've taken some images, and they look pretty good when processed by Berry's Multi245 and Aip245 software.
